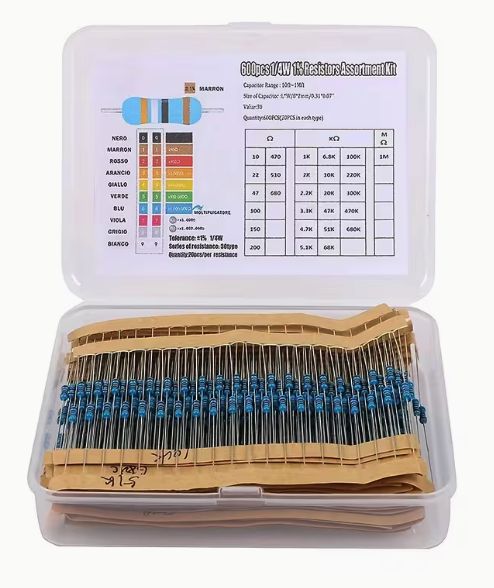

600pcs Resistor Assortment Kit, Carbon Film, 1/4W, ±1% Tolerance, 1Ω-1MOhm, Iron Material, Hardwired, Non-Battery, ≤36V Operating Voltage, with Variety Pack for Electronics

600-Piece Resistor Assortment Kit – Carbon Film ¼W ±1%, 1Ω to 1MΩ, 30 Values with Compartment Storage Box

600-Piece Resistor Assortment Kit – Contents:

Technical Specifications:

Handy Tips for Using the 600-Piece Resistor Assortment Kit:

1: This kit uses the 4-band colour code system — the first two bands are the significant digits, the third band is the multiplier, and the fourth band (gold) indicates ±5% tolerance. However, the product specifies ±1% tolerance which typically uses a 5-band code (three significant digits + multiplier + tolerance band). Always verify values with a multimeter in resistance mode before use — it takes two seconds and eliminates all guesswork.

2: The three most important values to know by heart for microcontroller projects are: 220Ω (LED current limiting from 5V), 1KΩ (transistor base resistor, general pull-up/down), and 10KΩ (GPIO pull-up/pull-down, voltage dividers, sensor circuits). These three values alone cover the majority of Arduino and ESP32 beginner to intermediate projects and will be the fastest depleted in this kit.

3: The ¼W power rating means each resistor can safely dissipate up to 0.25W of heat. For typical 3.3V and 5V microcontroller circuits, this is more than adequate — at 5V across a 220Ω resistor the power dissipation is only 5² ÷ 220 = 0.11W, well within the ¼W limit. For higher voltage circuits (12V+) always calculate the power dissipation using P = V² ÷ R and ensure it stays below 0.25W with a reasonable safety margin.

4: The operating voltage of ≤36V applies to the maximum voltage across the resistor terminals — not the supply voltage of your circuit. This is well within the range of all common hobby and DIY supply voltages (3.3V, 5V, 9V, 12V, 24V). For circuits operating above 36V, use resistors with a higher voltage rating or place two resistors in series to share the voltage across two components.

5: Resistors are non-polarised — they can be inserted into a circuit in either orientation with no effect on performance. This makes them the most beginner-friendly component in electronics. On a breadboard, bend the leads to the correct pitch, insert straight down, and trim the excess lead length flush with the underside of the board using small flush-cut wire cutters for a clean, professional result.

6: Keep the compartment box organised by value — once resistors from different compartments get mixed, identifying them by colour band alone is error-prone, especially under poor lighting. A digital multimeter set to resistance mode is the definitive way to identify any unknown resistor in the kit. As a long-term habit, always return unused resistors to their correct compartment immediately after use rather than leaving them loose on your workbench.
