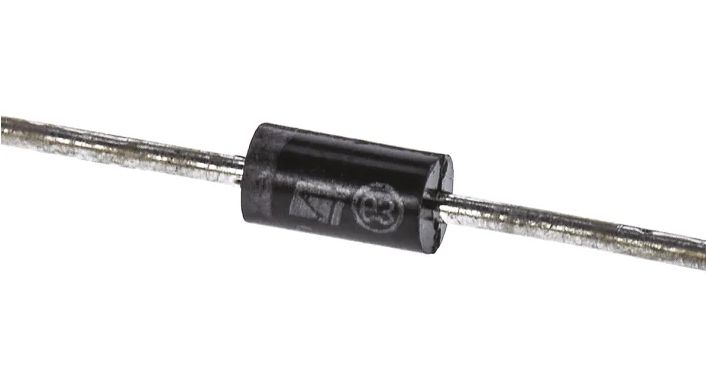

1N5819 Schottky Barrier Rectifier Diode - 5 Pack

1N5819 Schottky Barrier Rectifier Diode – 5 Pack – Technical Specifications:

Component Type – Schottky Barrier Rectifier Diode
Package – DO-41 Through-Hole
Quantity – 5 Units per Pack
Peak Reverse Voltage – 40V
Forward Current – 1A
Forward Voltage Drop – ~0.3–0.4V (Low)
Reverse Recovery Time – Very Fast (Schottky)
Cathode Marking – Stripe Band

Handy Tips for Using the 1N5819 Schottky Diode (5 Pack):

1: Schottky diodes have a much lower forward voltage drop (~0.3–0.4V) than standard silicon diodes (~0.7V) — this means less power wasted as heat, making the 1N5819 the preferred choice for efficiency-critical circuits.

2: Commonly used for reverse polarity protection on battery-powered projects — the low forward drop minimises voltage loss compared to a standard diode in the same role.

3: Ideal as a flyback/snubber diode across relay coils and small inductive loads, where its very fast switching helps suppress voltage spikes more effectively than a standard rectifier.

4: The 40V reverse voltage rating means it is suited to low-voltage DC circuits (5V–24V systems) rather than mains-level applications.

5: Each diode in this 5-pack can be used independently across multiple projects — handy for repairs, prototyping, or keeping spares on hand for this widely used component.
