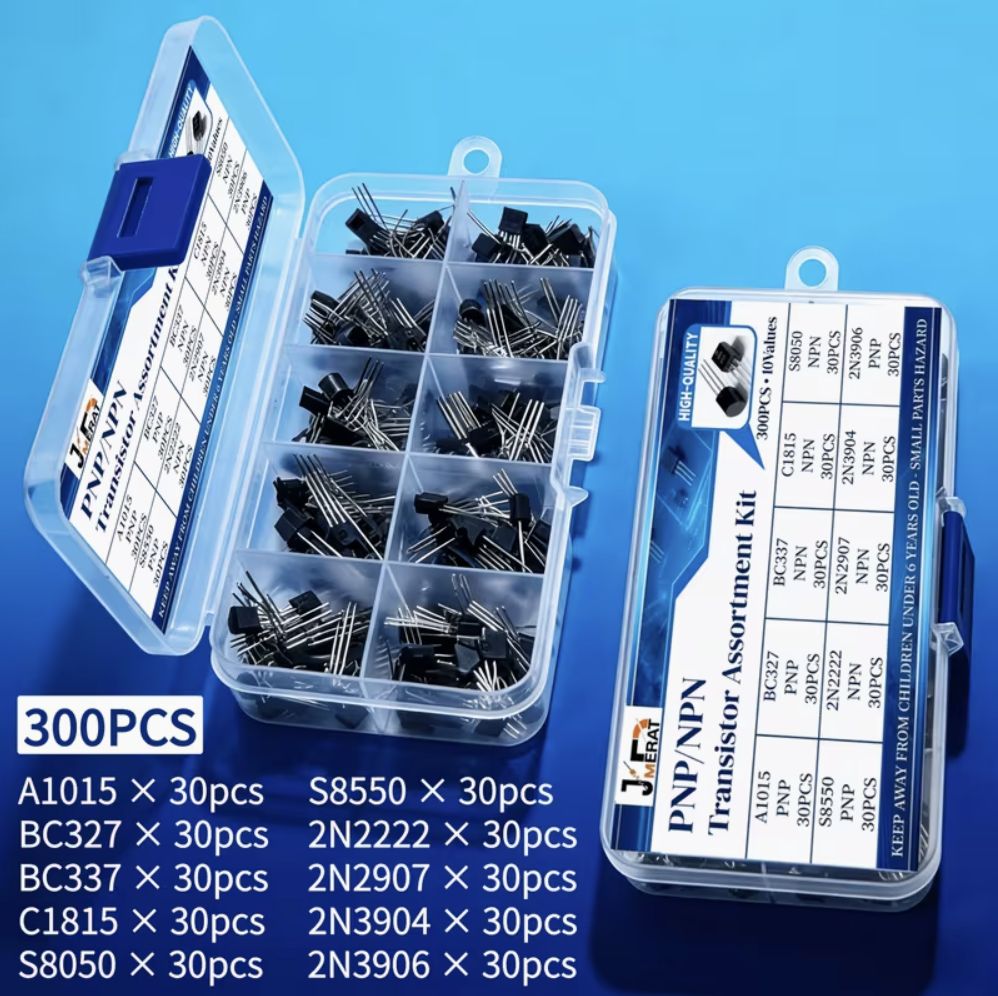

300-Piece Industrial Grade TO-92 Transistor Assortment Kit – 10 Values NPN & PNP, High Stability with Storage Box

300-Piece Industrial Grade TO-92 Transistor Assortment Kit – Contents:

Technical Specifications:

NPN / PNP Complementary Pairs in this Kit:

Handy Tips for Using the Industrial Grade TO-92 Transistor Kit:

1: This kit is thoughtfully arranged as 5 matched NPN/PNP complementary pairs — each NPN transistor has a corresponding PNP counterpart with near-identical voltage and current ratings. Complementary pairs are essential for push-pull amplifier stages, H-bridge motor drivers, and class-AB audio amplifiers where both polarities of the signal need to be handled symmetrically. Having matched pairs in stock eliminates the most common component sourcing bottleneck in these designs.

2: The industrial grade rating means these transistors are manufactured and tested to perform reliably across an extended temperature range of -55°C to +150°C — significantly wider than standard commercial grade components (typically 0°C to +70°C). This makes them suitable for automotive, outdoor, industrial control, and any application where temperature extremes are encountered during operation or storage.

3: The 2N5551 (NPN) and 2N5401 (PNP) are the standout high-voltage pair in this kit, rated for up to 160V Vceo. These are the correct choice for circuits operating from higher voltage rails such as 12V–48V industrial supply systems, valve/tube audio preamplifiers, MOSFET gate drivers, and any switching circuit where a standard 40V transistor would not provide adequate voltage headroom.

4: The TO-92 pinout varies between transistor families — never assume all transistors in this kit share the same pin order. Always verify the pinout from the specific datasheet before wiring. A quick and reliable shortcut is to use a component tester or transistor tester (available for under R100) — it will instantly identify NPN vs PNP, display the hFE current gain value, and correctly identify the Emitter, Base, and Collector pins of any unknown transistor in seconds.

5: Always use a Base resistor between your GPIO pin and the transistor Base — never connect directly. For 5V GPIO (Arduino), a 1kΩ resistor is a safe starting value for most transistors in this kit. For 3.3V GPIO (ESP8266, ESP32), use 330Ω to 470Ω to ensure sufficient base drive current to fully saturate the transistor into its switching region. An under-driven transistor operates in its linear region, dissipating power as heat rather than switching cleanly between ON and OFF states.

6: When switching inductive loads such as relay coils, solenoids, or DC motors with any transistor in this kit, always fit a flyback diode (such as a 1N4007) across the load in reverse bias — cathode toward VCC, anode toward the Collector for NPN circuits. Without this protection, the voltage spike generated by the collapsing magnetic field when the transistor switches off can instantly exceed the transistor's Vceo rating and destroy it, even at modest load currents.
