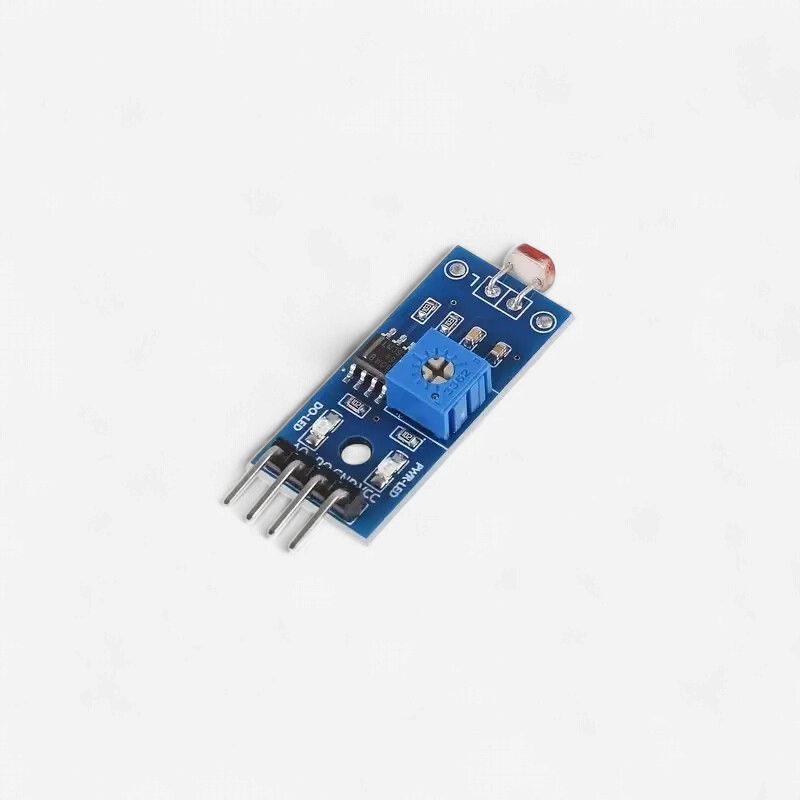

4-Pin Digital Light Detection Module with Photoresistor (LDR) — Analog & Digital Output for Arduino & ESP32

Handy Tips

1. Two outputs for two use cases — The digital output (DO) gives a simple HIGH/LOW signal based on whether light exceeds your set threshold — ideal for triggering relays, alarms, or automations. The analog output (AO) provides a variable voltage proportional to light intensity, useful when you need to measure actual brightness levels rather than just presence or absence of light.
2. Adjust threshold with the onboard trimmer — The blue potentiometer controls the LM393 comparator threshold. Turn clockwise to increase sensitivity (triggers in dimmer light) and anticlockwise to decrease it (requires brighter light to trigger). Always calibrate in your actual installation environment rather than on the bench under different lighting conditions.
3. Digital output logic is inverted — The DO pin goes LOW when light is detected above the threshold and HIGH in darkness. Account for this in your microcontroller code or Home Assistant automation by triggering on a LOW state or falling edge — the reverse of what many beginners initially expect.
4. LM393 comparator ensures clean switching — Unlike reading the raw LDR resistance directly on an ADC pin, the onboard LM393 comparator produces a clean snap between HIGH and LOW on the digital output with no slow transitions or noise. This makes the DO pin directly suitable for GPIO interrupts without additional filtering.
5. Avoid direct sunlight on the sensor — Photoresistors respond to a broad spectrum of visible light. In outdoor installations, shield the LDR from direct sunlight hitting it at an angle — mount it facing downward or inside a short tube to ensure it only responds to ambient light levels rather than direct solar glare which will permanently saturate the reading.
6. Use hysteresis in automations — When using the digital output to switch lights or relays at a fixed threshold, add hysteresis in your automation logic (e.g. turn on at below 30% brightness, turn off only above 40%) to prevent rapid on/off chattering when ambient light is hovering near the trigger threshold — particularly important at dawn and dusk.
7. Analog output needs a 3.3V-safe ADC on ESP32 — The AO pin outputs up to VCC voltage. If powering the module from 5V and reading AO on an ESP32 ADC pin (3.3V max input), use a voltage divider (two resistors) on the AO line to scale it down to a safe range and protect the ESP32 ADC input from overvoltage damage.
