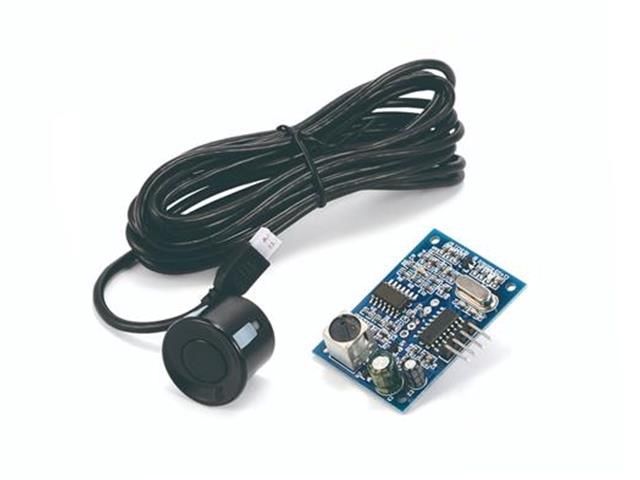

BMT Waterproof Ultrasonic Distance Sensor — 4.5m Range, 40kHz for Arduino & ESP32

Handy Tips

1. Mind the 25cm blind zone — Objects closer than 25cm to the sensor face will not be detected reliably and may produce erratic or zero readings. Design your mounting position to ensure your nearest expected target is always beyond this minimum distance — critical for tank level sensing and obstacle avoidance applications.
2. Distance calculation is straightforward — Trigger the sensor with a 10µs HIGH pulse on the Trig pin, then measure the duration of the HIGH pulse returned on the Echo pin in microseconds. Divide by 58 to get distance in centimetres (accounts for the speed of sound and the round-trip travel time).
3. 5V logic — level shift for 3.3V microcontrollers — The Echo pin outputs a 5V signal. Connecting this directly to an ESP32 or Raspberry Pi GPIO pin (3.3V tolerant only) risks damaging the microcontroller. Use a simple voltage divider (1kΩ + 2kΩ) or a logic level shifter on the Echo line when using 3.3V systems.
4. Waterproof transducer, not waterproof electronics — The ultrasonic transducer probe itself is weatherproof and can be mounted externally in rain or splash environments. However, if your module has a separate controller board, keep that board dry and protected inside an enclosure — only the probe head is sealed for outdoor exposure.
5. Avoid highly absorptive surfaces — Soft materials such as foam, thick fabric, loose soil, and angled or irregular surfaces absorb or scatter ultrasonic energy rather than reflecting it cleanly back to the sensor. For best results, use on hard flat surfaces (water, concrete, metal, glass) that reflect sound efficiently.
6. Add a timeout in your code — If no echo is received (target out of range or absorbed), the Echo pin can stay HIGH indefinitely and hang your code. Always set a maximum timeout in your pulse measurement function — typically 30ms, corresponding to the maximum 4.5m range round trip at the speed of sound.
7. Separate power supply for stable readings — Ultrasonic sensors draw a brief current spike on each trigger pulse. Powering directly from a microcontroller's 5V pin alongside other peripherals can cause voltage dips that introduce jitter in readings. For best accuracy, power from a dedicated 5V rail or add a 100µF decoupling capacitor across the VCC and GND pins close to the sensor module.
