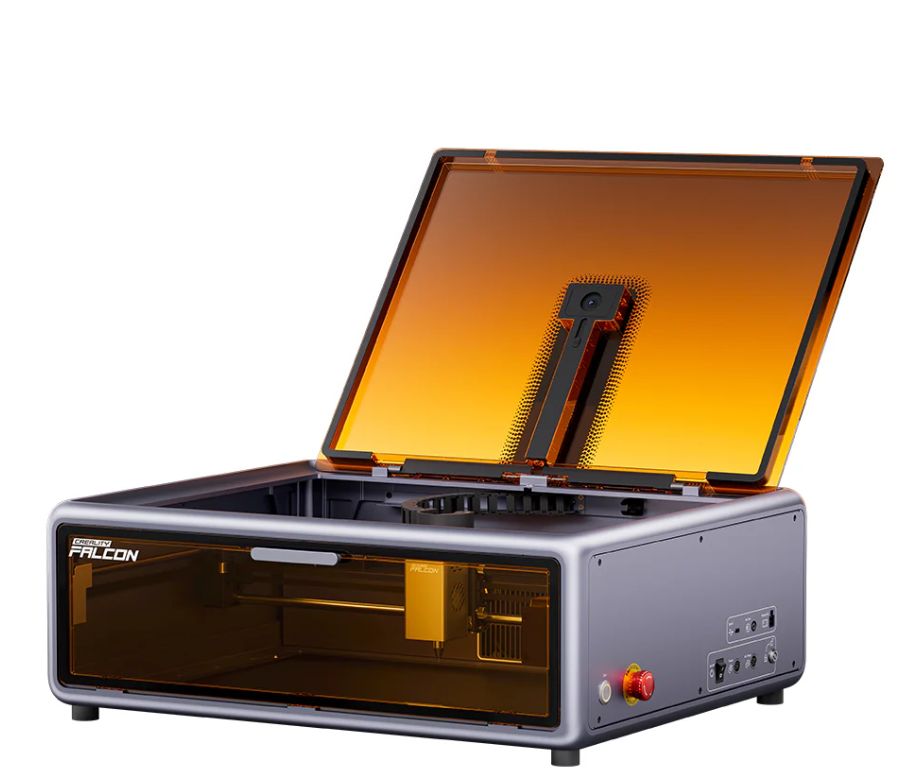

CR Falcon A1 Laser Engraver 10W Enclosed with Air Assist

The Creality Falcon A1 Laser Engraver is a compact, high-speed CoreXY diode laser engraver with smart camera integration, auto material recognition, and a fully enclosed safety design. It’s built for both beginners and professionals, offering precision, ease of use, and support for hundreds of materials.

Key Features

• Smart Camera System – full-frame HD camera with real-time preview, auto positioning, batch filling, and contour tracing

• Auto Material Recognition – built-in QR code system automatically detects materials and adjusts settings

• High Precision Laser – ultra-fine 0.06 × 0.08 mm compressed spot for sharp, lifelike engraving details

• 10W Dual-Beam Laser – powerful cutting performance across wood, acrylic, leather, plastics, and more

• CoreXY Motion System – speeds up to 600 mm/s, 3× faster than conventional engravers

• Auto Belt Tensioning – ensures slip-free, stable movement with precision up to 0.01 mm

• No Assembly Required – pre-assembled, plug-and-play setup with starter material kit included

• Compact Design – space-efficient footprint (447.5 × 553 × 200 mm), weighing only 20 lbs (≈9 kg)

• Safety Features – Class 1 laser safety, lid-open stop, emergency stop button, enclosed cover with eye protection, and smoke extraction fans

• Easy-to-Use Software – Falcon Design Space with editing tools, plus compatibility with LightBurn and LaserGRBL

Specifications

• Machine Power (Max): 120W

• Optical Power: 10W (dual-beam diode laser)

• Engraving Area: 305 × 381 mm

• Operating Temperature: 5°C – 35°C

• Laser Source: Diode Laser

• Laser Spot Size: 0.06 × 0.08 mm

• Laser Wavelength: 455 ± 15 nm

• Laser Class: Class 1 (FDA certified)

• Software Compatibility: LightBurn, LaserGRBL, Falcon Design Space

• Operating Systems: Windows, MacOS

• Supported File Formats: JPEG, JPG, PNG, BMP, SVG, DXF, etc.

• Supported Materials: Cardboard, wood, bamboo, rubber, leather, fabric, acrylic, plastic, glass, PU, jewelry, and more

• Product Size: 567 × 468 × 196 mm

• Equipment Weight: 15.55 kg

• Input Voltage: 100–240V ~ 50/60Hz

• Output Voltage: DC 24V 5A

• Certifications: EC60825, FDA, CE, ROHS, FCC, UL, PSE, SAA, RCM

• Package Size: 770 × 645 × 285 mm

• Gross Weight: 25.74 kg

What’s in the Box

• Creality Falcon A1 main unit

• Exhaust pipe & hose clamp

• Air assist equipment & silicone tube

• Power supply

• Basswood test sheet (300 × 300 × 3 mm)

• Calibration card

• Rotary kit connection cable

• Fixed focus block

• Type-A to Type-C cable

• Anti-static brush

• Allen wrench

• User documentation

Highlights

• Beginner-Friendly: Plug-and-play setup with auto material detection and starter kit

• Professional Performance: High-speed CoreXY system with precision up to 0.01 mm

• Safe for Home Use: Enclosed design, eye-protection cover, smoke extraction, and emergency stop

• Versatile Applications: Engraves and cuts hundreds of materials, suitable for crafts, signage, jewelry, packaging, and more

The Creality Falcon A1 Laser Engraver is a compact, high-speed, and safe diode laser engraver with smart automation features. It’s ideal for hobbyists, small businesses, and professionals who need precision engraving and cutting across a wide range of materials.
