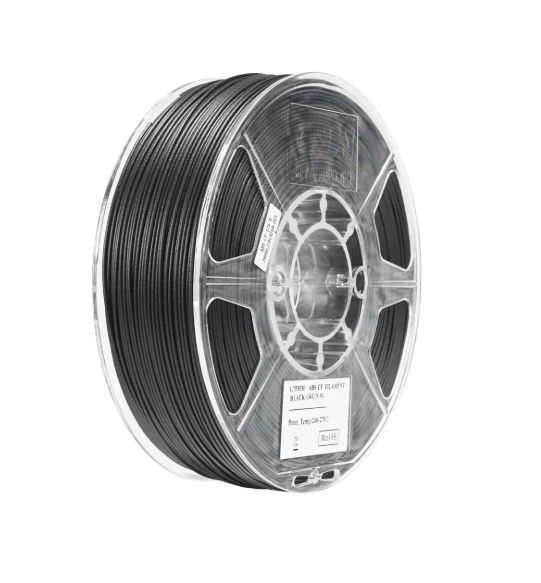

eSun eABS-CF - Black -1.75 - 1kg Filament

eSun eABS‑CF Filament – Technical Specifications

• Plastic Type: ABS with Carbon Fiber Reinforcement

• Plastic Diameter: 1.75mm

• Density (g/cm³): 1.06

• Melt Flow Index (g/10min): 14.2 (220℃/10kg)

• Heat Distortion Temp (°C, 0.45MPa): 97.2

• Tensile Strength (MPa):

  • XY: 43.34

  • Z: 29.9

• Elongation at Break (%):

  • XY: 3.08

  • Z: 2.51

• Flexural Strength (MPa):

  • XY: 76.2

  • Z: 29.1

• Flexural Modulus (MPa):

  • XY: 2694

  • Z: 1693.66

• IZOD Impact Strength (kJ/m²):

  • XY: 3.5

  • Z: 1.63

• Total Weight: 1kg spool

Suggested Print Settings

• Extruder Temperature (°C): 240 – 270

• Bed Temperature (°C): 100 – 110

• Printing Speed (mm/s): <200

• Fan Speed: 0% (minimal cooling recommended)

• Nozzle Type: Hardened steel or rigid nozzle (0.4mm / 0.6mm)

• Drying Requirement: 70°C for >8 hours before printing

• Enclosure: Strongly recommended (closed chamber printer)

• Adhesion: Heated bed required

Key Features

• Carbon fiber reinforcement significantly improves rigidity and toughness compared to standard ABS.

• Excellent impact resistance and chemical corrosion resistance.

• High heat distortion temperature (97°C), making it suitable for demanding environments.

• Lightweight with good wear resistance.

• Matte finish with reduced warping compared to pure ABS.

Typical Applications

• Tooling fixtures requiring high strength and durability.

• Automotive parts such as housings, brackets, and covers.

• Industrial applications needing impact resistance and chemical stability.

• Aerospace components where lightweight and rigidity are critical.

• Functional prototypes requiring mechanical performance under stress.
