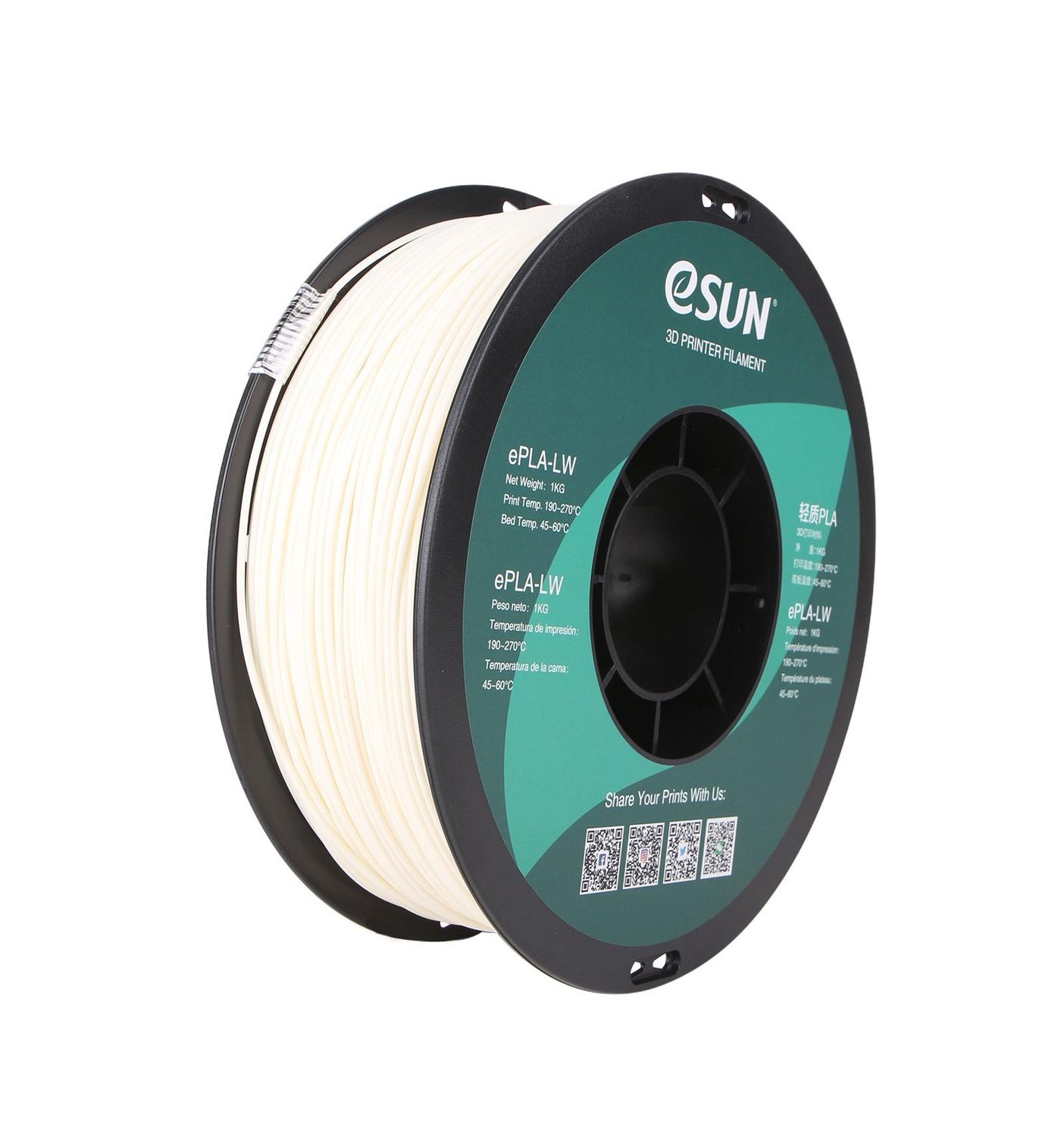

eSun ePLA-LW Light Weight-Natural-1.75-1kg Filament

eSUN ePLA-LW Lightweight Filament - Technical Specifications:

• Plastic Type

– PLA

• Plastic Colour

– Natural white

• Plastic Diameter

– 1.75mm

• Density (g/cm3)

– up to 0.54

• Distortion Temp (°C, 0.45MPa)

– 45

•  Melt Flow Index (g/10min)

– 8.1 (190℃/2.16kg)

• Tensile Strength (MPa)

– 32.2

• Elongation at Break (%)

– 68.9

• IZOD Impact Strength (kJ/m2)

– 8.58

• Total Weight

– 1kg

eSUN ePLA-LW Lightweight Filament - Suggested Print Settings:

• Nozzle: Temperature (°C)

– 190 to 270

• Nozzle: Unfoamed printing temperature (°C)

– 190 to 210

• Nozzle: Foam printing temperature (°C)

– 210 to 270

• Maximum foaming rate (270℃)

– 122%

• Lowest extrusion rate (270℃)

– 45%

• Nozzle: Material

– Brass / Any

• Nozzle: Size (mm)

– Standard: 0.4mm

• Bed: Temperature (°C)

– 45

• Bed: Adhesion

– Masking paper / PVP solid glue / glass board / carbon fiber board / PEI

• Printing Speed (mm/s)

– 40 to 80

• Part Cooling Fan

– 20% from 4^th layer

• Enclosure: Type

– Not Necessary

• Enclosure: Temperature (°C)

– N/A

• Filter

– N/A

• Post Processing

– XTC Coating / Painting
