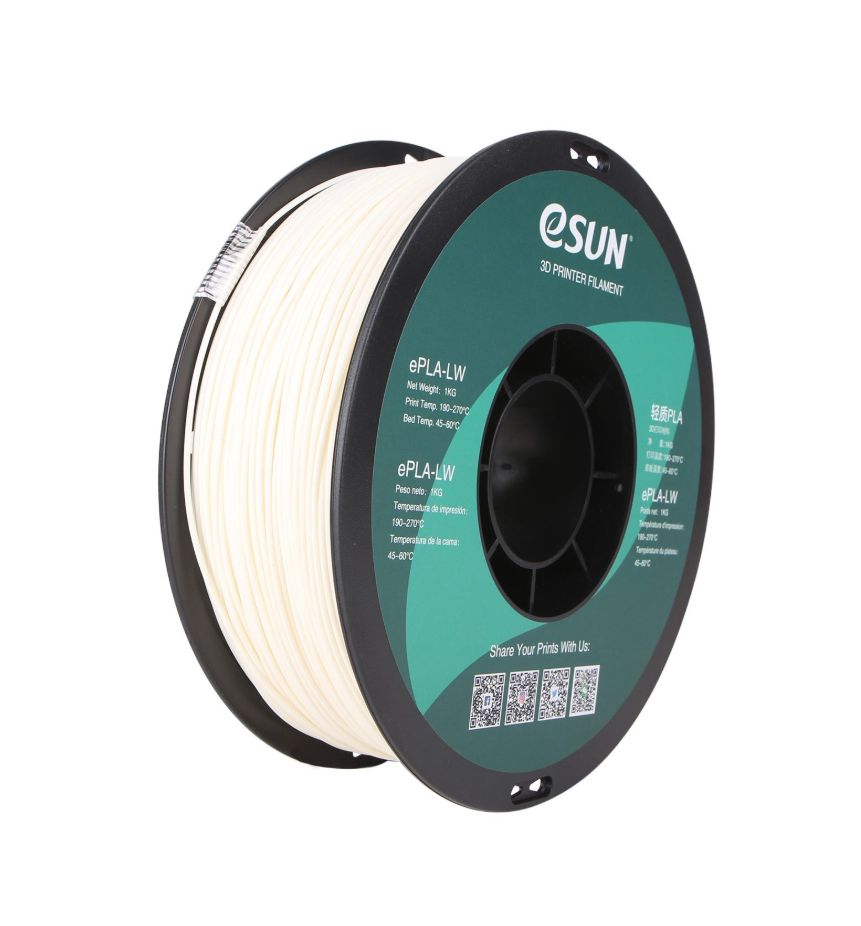

PLA-LW Filament

Overview

PLA-LW (Light Weight PLA) is a filament specially developed for aeromodelling. It uses active foaming technology to achieve lightweight, low-density PLA parts with a foaming volume ratio of 220% and a density as low as 0.54 g/cm³. The interlayer bonding is stable, and both foaming rate and strength can be controlled by adjusting the printing temperature.

Key Features

• Foaming makes layered patterns almost invisible

• Matte and delicate surface finish

• Enables lighter wing load and lower stall speed for model aircraft

• Greatly improves aeromodelling performance

Product Specifications

Physical Properties

• Density (g/cm³): 1.2

• Melt Flow Index: 8.1 (190°C/2.16kg)

• Heat Distortion Temp (°C, 0.45MPa): 42

• Tensile Strength (MPa) (XY): 11.39

• Tensile Strength (MPa) (Z): 1.74

• Elongation at Break (%) (XY): 4.02

• Elongation at Break (%) (Z): 1.52

• Flexural Strength (MPa) (XY): 20.4

• Flexural Strength (MPa) (Z): 3

• Flexural Modulus (MPa) (XY): 964.07

• Flexural Modulus (MPa) (Z): 206.83

• IZOD Impact Strength (kJ/m²) (XY): 5.49

• IZOD Impact Strength (kJ/m²) (Z): 0.73

Printing Parameters

• Extruder Temperature (°C): 190–270

• Bed Temperature (°C): 45–60

• Fan Speed (%): 100

• Printing Speed (mm/s): 40–100

• Heated Bed: Required
