L9110S Dual DC Motor Driver Module — 2x 800mA for Arduino, ESP32 & Robotics
R30.43
Buy and save
Buy and earn R0.17 Loyalty for your next purchase
Loyalty is a discount program that lets you buy products and earn points to redeem on your next purchase. Your Loyalty balance is updated when you pay online or in-store. The Loyalty amount shown on this page can be recalculated at the checkout.
In stock
1
L9110S Dual DC Motor Driver Module — 2x 800mA for Arduino, ESP32 & Robotics

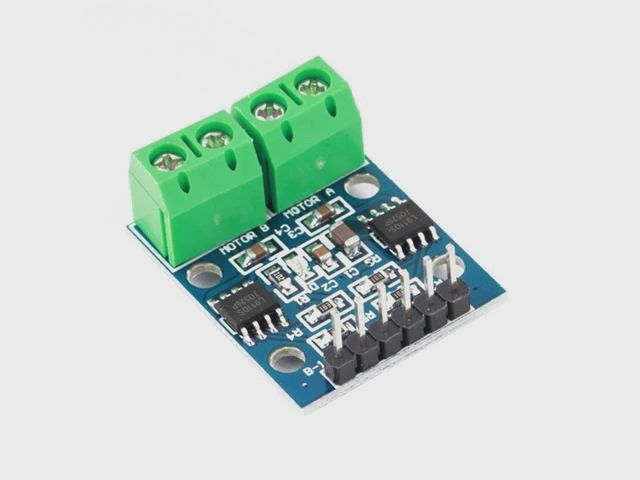

Product Details
| Spec | – Value |
|---|---|
| Driver IC | – L9110S |
| Supply Voltage | – 2.5V–12V DC |
| Motor Operating Voltage | – 2.5V–12V DC |
| Maximum Current Per Channel | – 800mA continuous |
| Number of Channels | – 2 (dual motor) |
| Motor Types Supported | – 2x DC motors or 1x 4-wire 2-phase stepper motor |
| PCB Size | – 28mm x 21mm (ultra-compact) |
| Mounting Holes | – Yes, 3mm diameter |
| Control Interface | – 4x GPIO pins (IA1, IB1, IA2, IB2) |
| Logic Voltage | – 3.3V and 5V compatible |
| Power Indicator | – Yes (onboard LED) |
| Output Connector | – 4-pin green screw terminal |
| Compatible With | – Arduino, ESP32, Raspberry Pi, PLC |
Pinout Reference
6-pin control header (black bent pin):
| Pin | Label | Function |
|---|---|---|
| 1 | VCC | Power input 2.5V–12V |
| 2 | GND | Ground |
| 3 | IA1 | Motor A direction input 1 |
| 4 | IB1 | Motor A direction input 2 |
| 5 | IA2 | Motor B direction input 1 |
| 6 | IB2 | Motor B direction input 2 |
4-pin green screw terminal (motor outputs):
| Terminal | Label | Function |
|---|---|---|
| 1 | OA1 / OB1 | Motor A output (either wire) |
| 2 | OA2 / OB2 | Motor B output (either wire) |
Handy Tips
- Direction control truth table — For Motor A: IA1 HIGH + IB1 LOW = forward; IA1 LOW + IB1 HIGH = reverse; both LOW = coast/stop; both HIGH = brake. The same logic applies to IA2/IB2 for Motor B — no additional enable pin is needed.
- PWM speed control — Connect IA1 or IB1 to a PWM-capable GPIO pin and set the opposing pin LOW to control motor speed via duty cycle. This works on both Arduino (
analogWrite) and ESP32 (ledcWrite) without any additional components. - 3.3V logic compatible — The L9110S control inputs work reliably at 3.3V logic levels, making it directly compatible with ESP32, ESP8266, and Raspberry Pi GPIO pins without level shifting.
- Separate motor and logic power if needed — While VCC powers both the logic and motor driver from a single supply, for noise-sensitive applications consider decoupling with a 100µF electrolytic capacitor across the VCC and GND pins close to the module to absorb motor switching spikes.
- Stepper motor support — To drive a 4-wire 2-phase stepper motor, connect both coil pairs to OA and OB outputs and step through the IA1/IB1/IA2/IB2 pin sequence in your code. Standard full-step and half-step sequences apply — no additional library hardware is required.
- 800mA per channel is a continuous rating — Peak currents during motor startup or stall can exceed this significantly. For motors that stall frequently or draw high startup current, add a small heatsink or ensure adequate airflow over the IC to prevent thermal shutdown.
- Motor wire polarity determines direction — The screw terminal outputs have no fixed polarity — swapping the two wires on a DC motor reverses its physical direction relative to your control logic. Set your wiring first, then confirm direction in code before finalising your installation.
