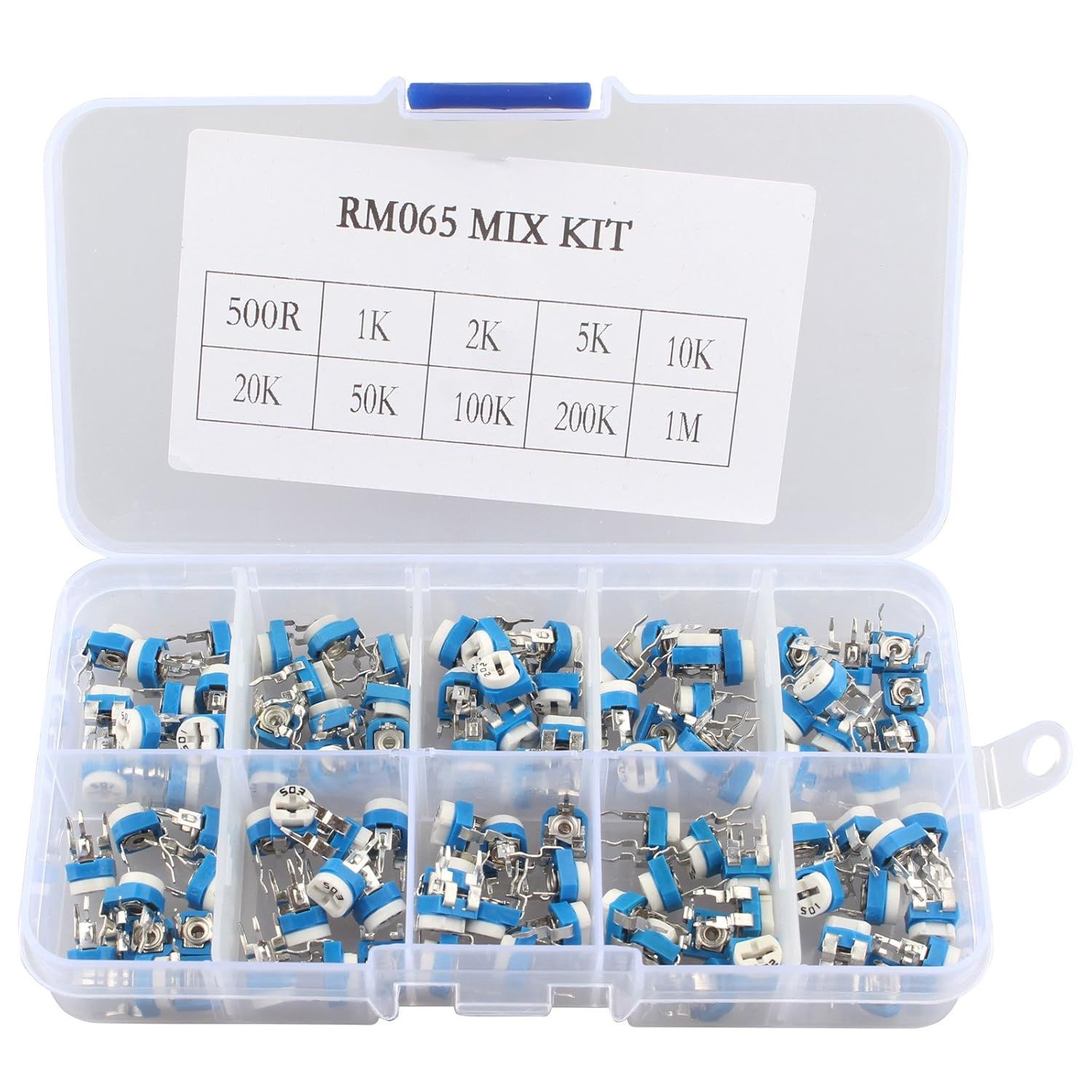

RM065 Trimmer Potentiometer Assortment Kit – Contents:
| Code | Resistance Value | Quantity |
|---|---|---|
| 100R (101) | 100Ω | 10pcs |
| 200R (201) | 200Ω | 10pcs |
| 500R (501) | 500Ω | 10pcs |
| 1K (102) | 1,000Ω | 10pcs |
| 2K (202) | 2,000Ω | 10pcs |
| 5K (502) | 5,000Ω | 10pcs |
| 10K (103) | 10,000Ω | 10pcs |
| 50K (503) | 50,000Ω | 10pcs |
| 100K (104) | 100,000Ω | 10pcs |
| 500K (504) | 500,000Ω | 10pcs |
| Total | – | 100pcs |
Technical Specifications:
| Model | – RM065 |
| Type | – Single-Turn Cermet Trimmer Potentiometer |
| Resistance Range | – 100Ω to 500KΩ (10 Values) |
| Tolerance | – ±20% |
| Rated Power | – 0.1W (100mW) at 70°C |
| Rated Voltage | – 200V DC Max |
| Resistance Law | – Linear (Type B) |
| Adjustment | – Single-Turn (270° rotation) |
| Adjustment Tool | – Small Flathead Screwdriver |
| Contact Type | – Cermet (Ceramic-Metal) |
| Mounting Type | – Through-Hole PCB / Breadboard |
| Pin Pitch | – 2.54mm (Standard 0.1" / 100mil) |
| Body Dimensions | – 6.5 × 6.5 × 5mm |
| Operating Temperature | – -55°C to +125°C |
| Lifespan | – ≥ 200 Adjustment Cycles |
| Storage | – Labelled Compartment Box Included |
| Compatible Platforms | – Arduino, ESP8266, ESP32, Raspberry Pi, Breadboards, PCBs |
Reading the RM065 Resistance Code:
| Marking | How to Read | Value |
|---|---|---|
| 101 | 10 × 10¹ | 100Ω |
| 201 | 20 × 10¹ | 200Ω |
| 501 | 50 × 10¹ | 500Ω |
| 102 | 10 × 10² | 1,000Ω (1KΩ) |
| 202 | 20 × 10² | 2,000Ω (2KΩ) |
| 502 | 50 × 10² | 5,000Ω (5KΩ) |
| 103 | 10 × 10³ | 10,000Ω (10KΩ) |
| 503 | 50 × 10³ | 50,000Ω (50KΩ) |
| 104 | 10 × 10⁴ | 100,000Ω (100KΩ) |
| 504 | 50 × 10⁴ | 500,000Ω (500KΩ) |
Handy Tips for Using the RM065 Trimmer Potentiometer Kit:
1: The RM065 trimmer potentiometer is designed to be adjusted once or occasionally during circuit calibration — not for frequent user interaction. It has three pins: the two outer pins are the fixed resistor terminals (full resistance end-to-end), and the centre pin is the wiper which outputs a variable voltage or resistance as you turn the adjustment screw. In a voltage divider configuration, connect one outer pin to VCC, the other to GND, and the centre wiper to your signal or ADC input pin.
2: The resistance code uses the same 3-digit system as fixed resistors — the first two digits are the significant figures and the third is the multiplier. So 103 = 10 × 10³ = 10,000Ω = 10KΩ. The 10KΩ trimmer is the most universally useful value in this kit — found in sensor calibration circuits, comparator threshold setting, LCD contrast adjustment, and op-amp gain tuning. Stock up on this value first.
3: Always use a small flathead screwdriver to adjust the wiper — never a pencil, finger, or improvised tool. The RM065 has a 270° single-turn adjustment range — turn clockwise to increase resistance and anticlockwise to decrease it. Adjust slowly in small increments while monitoring your circuit output with a multimeter. Do not force the wiper past its mechanical stop at either end of travel as this permanently damages the cermet track.
4: The RM065 is breadboard compatible — its 3 pins on 2.54mm pitch fit directly into standard breadboard rows. This makes it ideal for prototyping variable resistance and voltage divider circuits before committing to a fixed resistor value. Once you have dialled in the exact resistance your circuit needs, measure it with a multimeter and replace the trimmer with the nearest E12 fixed resistor value for a permanent, more reliable solution.
5: The cermet resistance element gives the RM065 significantly better temperature stability, moisture resistance, and longevity compared to carbon film trimmers. Rated from -55°C to +125°C, it is suitable for automotive, industrial, and outdoor electronics where temperature extremes are encountered — well beyond the typical range of standard carbon trimmers found in cheaper kits.
