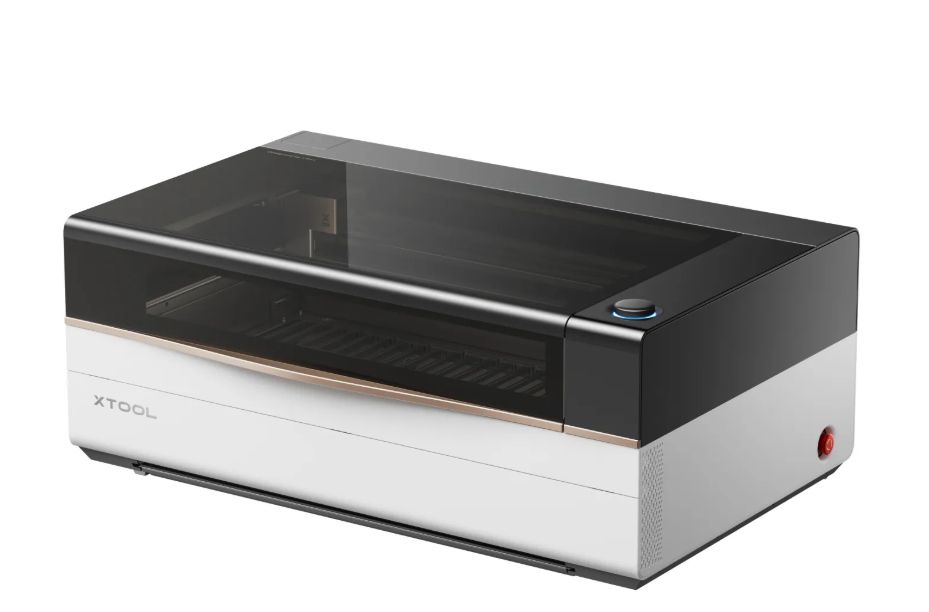

xTool P3 80W Flagship CO2 Laser Cutter with Intelligent Automation

The xTool P3 is the flagship 80W CO₂ laser cutter designed for professional-grade production, offering unmatched speed, precision, and automation. It features a massive 36" × 18" working area, 1200 mm/s speed, dual-camera positioning, LiDAR autofocus, and an AutoLift base, making it ideal for scaling small businesses into industrial-level output.

Key Highlights

• Laser Power: 80W CO₂ laser with optional 5W IR module for metals/plastics

• Working Area: 915 × 458 mm (36" × 18"), 2.3× larger than P2

• Speed: Up to 1200 mm/s, double the P2’s speed

• Cutting Capacity:

  • Basswood: 20 mm in one pass

  • Acrylic: 25 mm in one pass

• Automation: ACS™ (Automated Creation System) for “Place & Go” workflow

• Dual Cameras: 16MP SkyView panoramic + close-range detail camera (0.2 mm precision)

• LiDAR Autofocus: Seamless, automatic depth measurement for perfect cuts

• AutoLift Base: Handles objects up to 220 mm tall without riser accessories

• Conveyor System: Intelligent feeder supports unlimited material length

• Rotary Engraving: RA3 rotary with 360° LiDAR mapping and 3D preview

• Safety: Certified Class 1 laser safety, built-in CO₂ fire suppression, 8 flame sensors, temperature sensor, dual-side cameras

• Cooling: Integrated inverter water chiller for stable performance

• Software: xTool Studio with AI layout optimization, batch fill, and spreadsheet-driven variable data engraving

Specifications

• Laser Type: CO₂ 80W + optional 5W IR

• Spot Size (lens options):

  • S (1.5"): 0.14 × 0.16 mm (detail engraving)

  • M (2.0"): 0.15 × 0.18 mm (all-rounder, included)

  • L (2.5"): 0.18 × 0.20 mm (thick cutting)

• Processing Height: 220 mm (AutoLift base)

• Rotary Diameter: Up to 200 mm

• Motion Accuracy: 0.01 mm

• Dimensions: 1250 × 780 × 496 mm

• Weight: 105 kg

• Input Power: 1400W

• Safety Certification: Class 1

Reasons to Choose

• Industrial-grade performance in a desktop footprint

• Handles transparent materials (acrylic, glass) that diode lasers cannot

• Automated workflow reduces manual setup and errors

• High safety standards with built-in suppression and monitoring

• Future-proof versatility with dual-laser modules and interchangeable lenses
