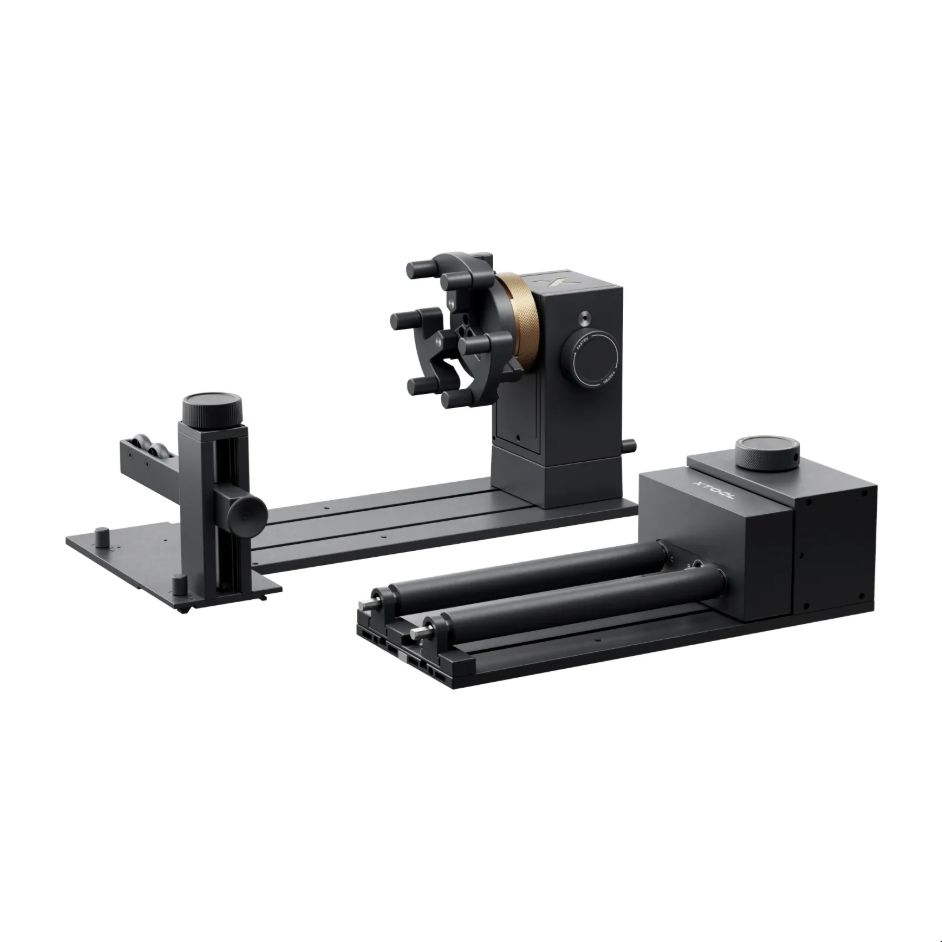

xTool RA3 rotary roller kit: The Intelligent Rotary that Masters Engraving on Rings, Tumblers & Ornaments

The xTool RA3 is the world’s first Smart MagSwap™ rotary system, designed for engraving rings, tumblers, ornaments, and other cylindrical or irregular objects. It offers tool‑free magnetic swapping between roller, chuck, sphere, and ring modes, plus advanced automation features when paired with P Series machines.

Key Highlights

• Compatibility: xTool P Series (P3, P2S, P2 with riser base) and F Series (F2, F1 Ultra, F2 Ultra, F2 Ultra UV)

• Product size: 324 × 187 × 148 mm

• Product weight: 2.26 kg

• Engrave diameter ranges:

  • Chuck: 0–130 mm

  • Roller: 3–198 mm

  • Sphere: 25–100 mm

  • Ring: 11–70 mm

Features & Benefits

• Smarter workflow with automatic mode recognition, 3D preview, and auto‑focus (P Series only)

• MagSwap™ design for quick, tool‑free switching between attachments

• Enlarged 130 mm chuck for larger items

• One‑step inner ring angle adjustment (26°) for tapered or inner ring engraving

• Batch processing capability with roller and chuck kits

• 360° LiDAR Mapping™ for precise alignment and full‑wrap engraving on complex shapes (P Series only)

What’s Included

• RA3 rotary unit

• MagSwap™ chuck, roller, sphere, and ring attachments

• Fast‑swap magnetic mounting system

• Optional Chuck Kit and Roller Extension Kit for batch production

Best Use Cases

• Engraving tumblers, mugs, and bottles

• Full‑wrap engraving on vases and cylindrical objects

• Jewelry engraving (rings, bangles, ornaments)

• Batch production for small business customization

• Complex shapes like spheres and irregular items

Considerations

• Smart automation features (3D preview, auto recognition, LiDAR mapping) are only supported on P Series machines

• F Series machines (galvo lasers) support MagSwap™ and mechanical upgrades but not automated modeling functions

• Requires riser base for use with P2/P2S

The RA3 is ideal if you want maximum flexibility and speed in rotary engraving, especially for businesses handling diverse shapes and batch orders. It’s a major upgrade over the RA2 Pro, with larger capacity, faster setup, and smarter automation.
