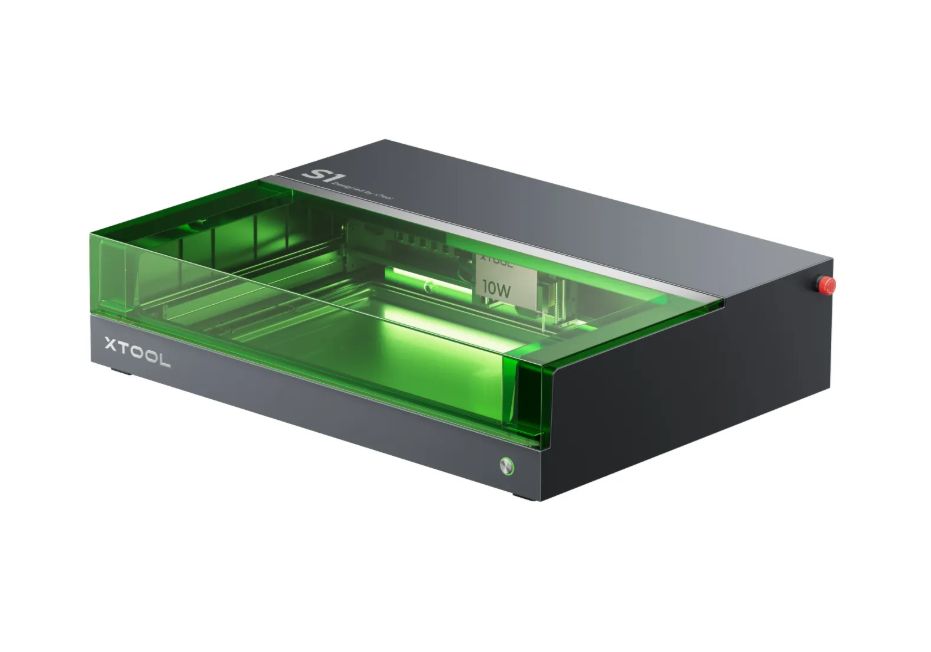

xTool S1 Enclosed Diode Laser Cutter 40W Kit

Key Highlights

• Available in 40W and 20W diode laser versions

• Optional 1064nm IR module for engraving metals and plastics

• Pin-point™ positioning system for high accuracy (10× more precise than single-camera setups)

• Cutting/engraving speed up to 600 mm/s

• Large working area: 498 × 319 mm (19.6" × 12.5")

• AutoPassthrough™ supports material lengths up to 3000 mm with conveyor feeder

• Rotary engraving compatible with RA2 Pro (tumblers, mugs, rings)

• Height capacity up to 125 mm with riser base

• Safety features: Class 1 certified, 5-direction flame detection, emergency stop, lid-open safety stop, laser key lock

• Software compatibility: xTool Creative Space (XCS) and Lightburn

• Connectivity: USB/Wi-Fi, supports Windows, macOS, Android, iOS

Specifications

• Laser Spot Size

  • 40W: 0.08 × 0.10 mm

  • 20W: 0.08 × 0.06 mm

• Working Speed: 600 mm/s (both versions)

• Working Area

  • 40W: 498 × 319 mm

  • 20W: 498 × 330 mm

• Weight: 20 kg (both versions)

• Dimensions: 765 × 561 × 183 mm (without riser)

• Max Height (with riser): 125 mm

• Certifications: IEC/EN60825, FCC, FDA, CE, UKCA, RCM, SAA

Reasons to Choose

• Strong alternative to CO2 cutters at lower cost

• Beginner-friendly yet powerful enough for professional applications

• Comprehensive safety features for home or workshop use

• Wide material compatibility (wood, acrylic, leather, glass, metals with IR module)
